Product news

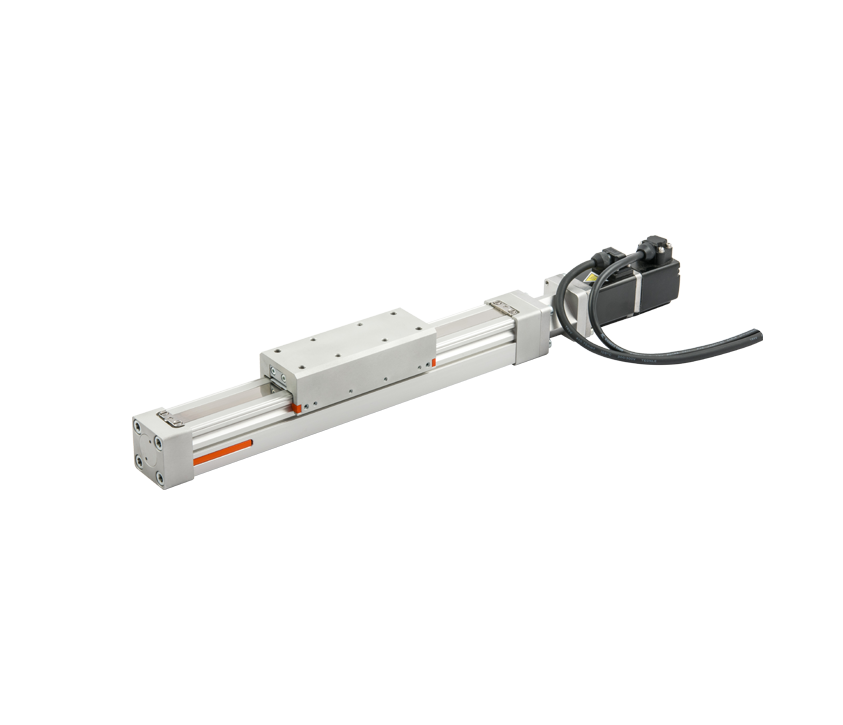

Screw-driven rodless Electric Axis Elektro SK0 Series

Range widening: Screw-driven rodless Electric Axis Elektro SK0 Series

Metal Work's range of electric axis expands with the new Screw-driven rodless Electric Axis Elektro SK0 Series, which is characterized by its extreme compactness and lightness.

The main body is made using an extrusion in which there are two "V-shaped" guides on which a moving carriage slides fitted with two wear-resistant acetal resin pads. The pad clearance can be adjusted by means of threaded grub screws placed to the side of the carriage that can be used to make up any play caused by wear.

Due to pad support, the carriage only conveys axial forces to the feed system consisting of a self-lubricating techno-polymer nut and a lead stainless steel screw. Two slots are provided on each side of the liner for fixing magnetic sensors.

SK0 electric axis can be supplied with STEPPING or BRUSHLESS motors with optional motor brake and / or built-in encoder. This axis can be always supplied without motor drive or with modules for interfacing with other motors from the trade.
